BZ15 25
Pump Head
BZ15 25
This product is currently widely used a classic pump head, rollers are   made from stainless steel or PET-TX, casing is made from PC. The whole   pump head is crystal clear and transparent. It is easy for the user to   observe the operation of the pump
CONTACT US
CHARACTER
TECHNICAL PARAMETERS
Character:

  • Crystal clear, low pulse

  • Stable operation and stackable

  • Compact size

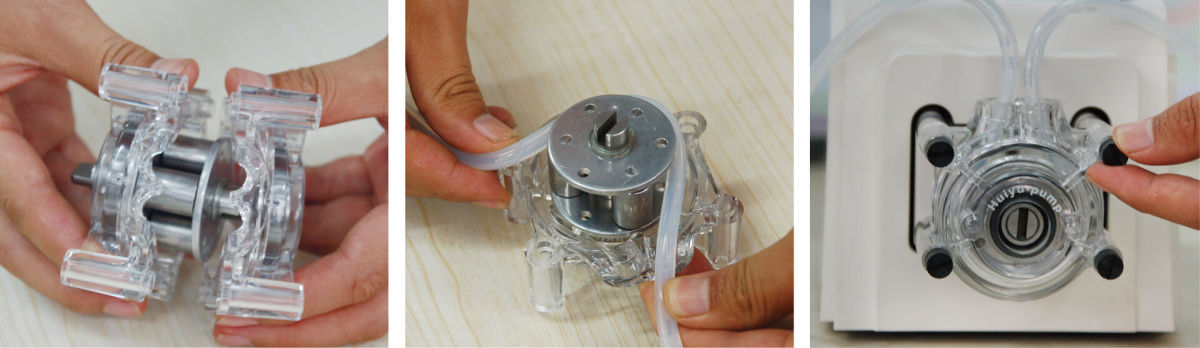

  • Dismounting the pump head from the drive is needed when loading the tubing

  • Standard pump head, fixed occlusion

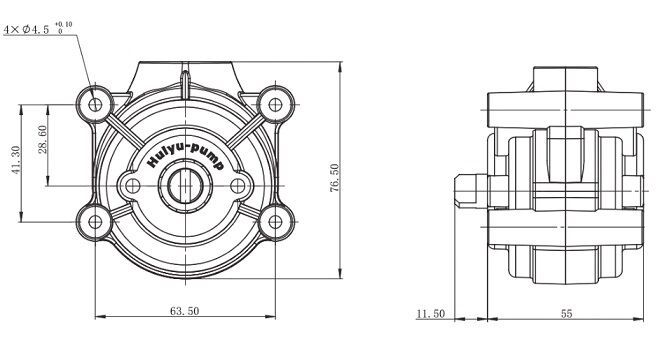

EASUREMENTS:





PARAMETERS :



ModelAvailable tubingMax flow rate（ml/min）Speed range（rpm）Casing materialRollers NO.Rollers materialWeight（kg）
BZ25-1A24#1600≤600PC3304PET-TX0.31


ModelBZ15-1A-14BZ15-1A-16BZ15-1A-25BZ15-1A-17
tubing14#16#25#17#
Tubing OD4.8mm6.4mm8mm9.6mm
Tubing ID1.6mm3.2mm4.8mm6.4mm
Max flow(ml/min)1504609601600
Speed range(rpm)≤600
