PRODUCTS

Should you have price for peristaltic pumps required, please feel free to contact us.

YZ15 25
Pump Head
YZ15 25
Max flow rate: 2200ml/min
Model: YZ15/25 series
Classical design
Lab use, stackable pump heads
CONTACT US
CHARACTER
TECHNICAL PARAMETERS

Character :


  • Its materials is PSU which has stable performance and high temperature resistance (150 °C )

  • Resistant acid, soda, but not organic solvent

  • Inside metal parts are made from 304 stainless steel

  • Rollers working surface has been widened to reduce the grinding of tubing, and enhanced the life of the tubing

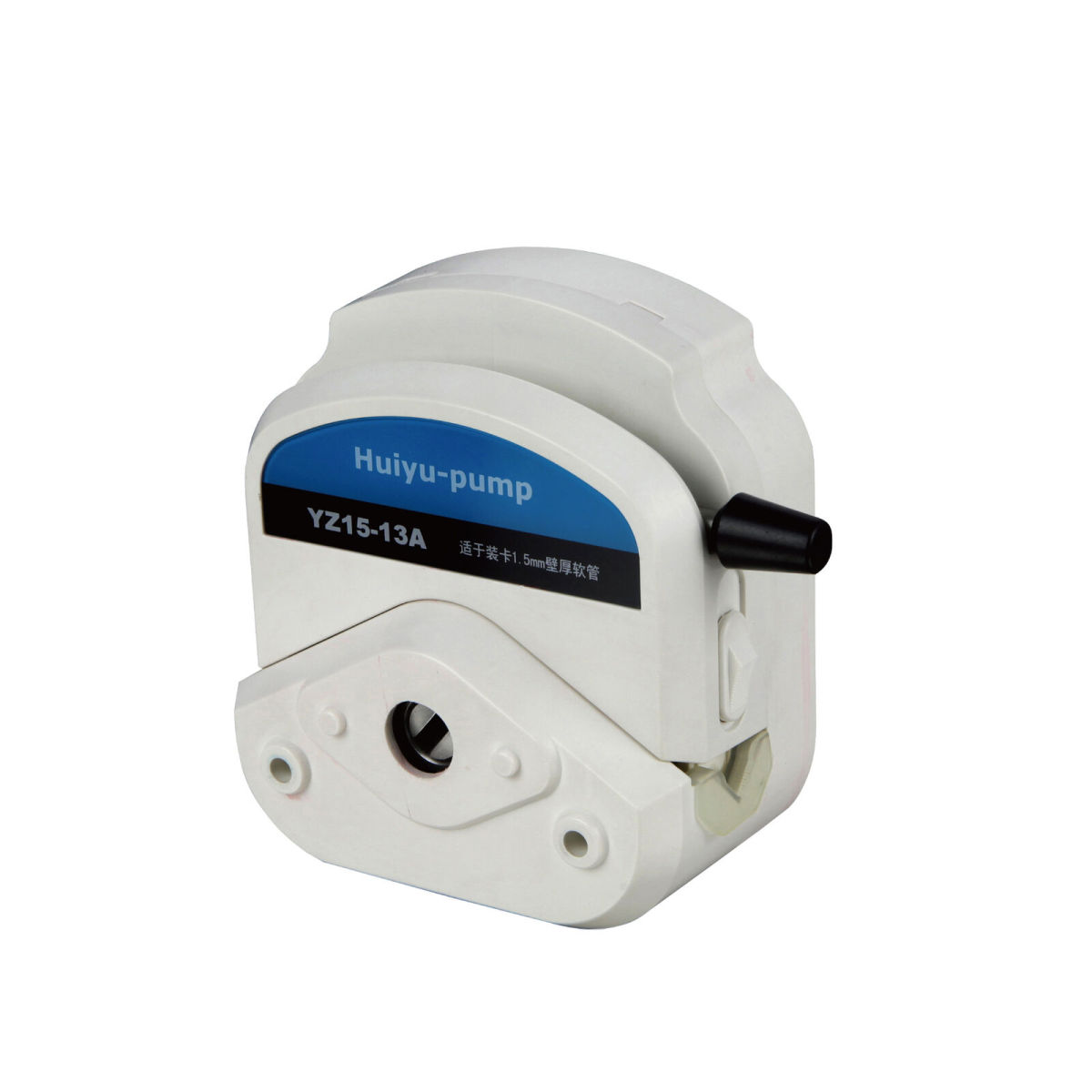

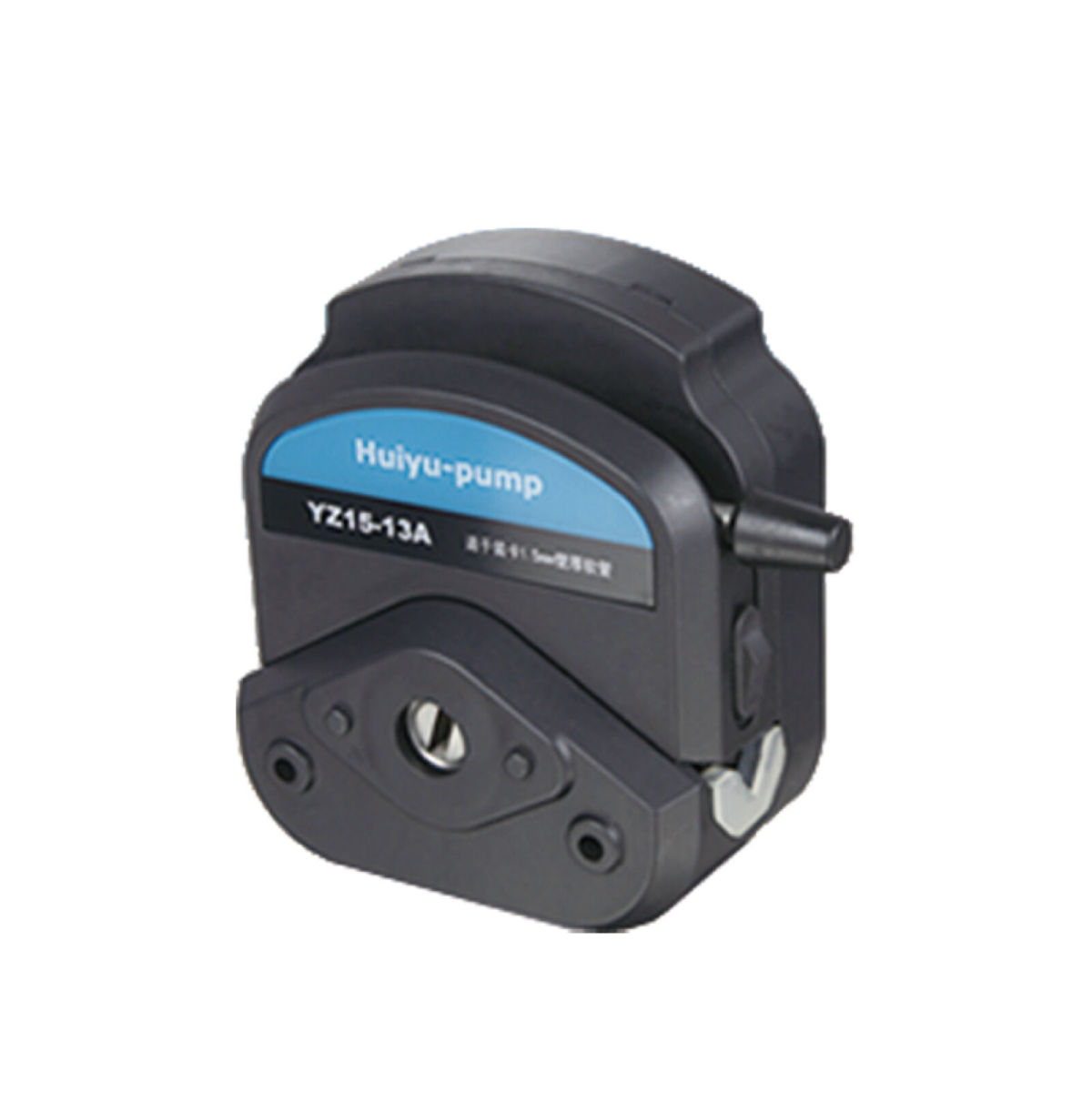

慧宇流体宣传册1-10-08.jpg 慧宇流体宣传册1-10-09.jpg




PARAMETERS :


Model

Available tubing

Max flow rate(ml/min)

Speed range(rpm)

Rollers material

casing material

Rollers NO.

weight(kg)

YZ15-13A

13#、14#、19#、16#、25#、17#18#

2200

≤600

304

PSU

3

0.4

YZ25-13A

15#、24#

1600
